SMD 47470SC bobbin-wound surface-mount inductors to reduce EMI

Name: SMD 47470SC bobbinwound surfacemount inductors to reduce EMI
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : 47470SC

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Reel

Product name : SMD 47470SC bobbin-wound surface-mount inductors to reduce EMI

Size : 12.2*12.2*5.00

Inductance : 47uH

DC Current : 1.9 A

Pin finish : Tin

Peak reflow solder temperature : 245˚C

Contact Now

SMD 47470SC bobbin-wound surface-mount inductors to reduce EMI

FEATURES:

RoHS compliant
1.0μH to 1.0mH
Up to 10A IDC
Bobbin format
Surface mount
Integral EMI shield
Compact size
Tape and reel packaging
UL 94V-0 materials
J-STD-020-C reflow

The 4700S series is a range of bobbin-wound,
surface-mount inductors designed for use in
switching power supply, and power line filter
circuits. The parts are suitable for any application
requiring a high saturation current in a low-profile
package. The devices have an integral ferrite
shield to reduce EMI.

Order Code	Inductance (10kHz, 100mVAC) ±20%	DC Current	DC Resistance	SRF	Q Factor
	Nom.	Max.	Max.	Typ.	Typ.
	μH	A	mΩ	MHz	Q	@ f (MHz)
47470SC	47	1.9	168	11	23	1
47680SC	68	1.6	210	9	23	1
47101SC	100	1.3	267	8	20	0.8
47151SC	150	1.1	410	7	19	0.8
47221SC	220	0.8	629	6	20	0.8
47331SC	330	0.7	940	5	21	0.8
47471SC	470	0.58	1330	5	23	0.8
47681SC	680	0.48	1780	4	17	0.8
47102SC	1000	0.40	2540	4	17	0.8

SMD 47470SC bobbin-wound surface-mount inductors to reduce EMI

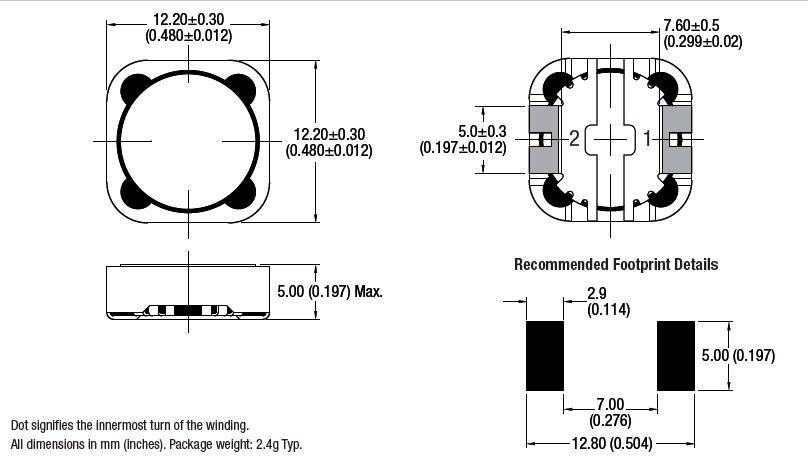

Shape and Dimensions:
